Guide 02

Graphics and sound

How the Xbox-era renderer and audio got onto SDL2, OpenGL and a 5-channel float mixer, and how THUG2's music and voice streams play. All of it came over from the THUG1 port: same engine, same file formats, so THUG2 got its picture and its soundtrack on day one.

GoalSame picture and sound as THUG2's PC release, from its original data files, on a Mac.

The code here was written for the THUG1 port (the diffs are from there) and runs THUG2 unchanged, except for the few format differences the story covers: fonts, skins, animations.

1Render into a backbuffer, present it scaled

The game draws into an off-screen framebuffer at the render resolution; presenting draws that texture as one quad into the window. Everything else (resolution, letterboxing, motion blur) hangs off this.

excerptWn32/Code/Plat/Gfx/p_nx.cpp

// Bind screen FBO (cleared to black for the bars when the window's aspect ratio differs from the backbuffer's)
glBindFramebuffer(GL_FRAMEBUFFER, 0);
glClearColor(0.0f, 0.0f, 0.0f, 1.0f);
glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);

// Bind backbuffer texture
glActiveTexture(GL_TEXTURE0);
NxWn32::EngineGlobals.backbuffer->BindColorTexture();

// Draw backbuffer quad, scaled to fit the window
NxWn32::SetPresentViewport();
NxWn32::EngineGlobals.fullscreen_quad->Bind();
glDrawElements(GL_TRIANGLES, 6, GL_UNSIGNED_SHORT, nullptr);

SDL_GL_SwapWindow(NxWn32::EngineGlobals.window);

Training: the backbuffer drawn as one quad, scaled into the window.

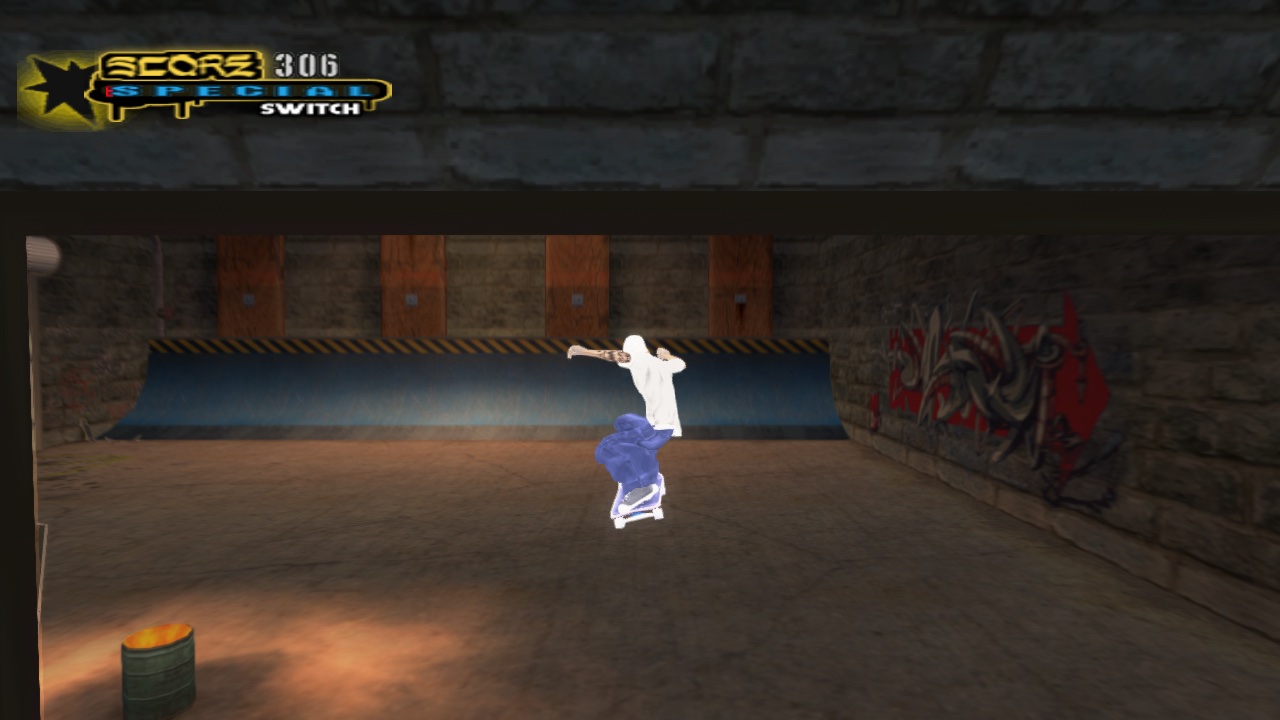

In the air in Training. — Motion blur reuses the previous frame from the same backbuffer.

2Decode console-flavoured textures

Xbox textures are swizzled (Morton order) and fonts are 8-bit palettized. They're unswizzled and expanded to RGBA before glTexImage2D. THUG2's 2D sprites add one more twist: their rows are stored bottom-up.

excerptWn32/Code/Plat/Gfx/nx/chars.cpp

// Decode palettized texture
for( i = 0; i < NumBytes; ++i )
{
	uint8 *p = p_clut[*p_texel_data_p++];
	*p_texture_p++ = p[0];
	*p_texture_p++ = p[1];
	*p_texture_p++ = p[2];
	*p_texture_p++ = (p[3] >= 0x80) ? 0xFF : (p[3] * 2); // Alpha is halved, PS2 remnant?
}
glTexImage2D(GL_TEXTURE_2D, 0, GL_RGBA, Width, Height, 0, GL_RGBA, GL_UNSIGNED_BYTE, p_texture);

PS2 alpha goes 0–128, because 128 means "fully opaque" on the GS. Twenty years later we're still multiplying by two.

3One mixer for everything

A single SDL audio callback at 48 kHz, 5 float channels: music and voice streams first, sound effects on top. Locks around it keep the game thread from swapping streams mid-buffer.

excerptWn32/Code/Plat/Audio/Mixer.cpp

void AudioCallback(void *userdata, Uint8 *stream, int len)
{
	std::fill((float*)stream, (float*)(stream + len), 0.0f);
	Pcm::PCMAudio_Mix((char*)stream, len);     // music + streams
	Sfx::MixSoundFX((char*)stream, len);        // sound effects
}

SDL_AudioSpec s_wanted_spec = {};
s_wanted_spec.format = AUDIO_F32SYS;
s_wanted_spec.freq = 48000;
s_wanted_spec.channels = 5;
s_wanted_spec.samples = 1024;
s_wanted_spec.callback = AudioCallback;

excerptWn32/Code/Plat/Gel/SoundFX/p_sfx.cpp

static constexpr float SOUND_VOLUME = 0.5f; // PC sounds are much too loud

4The soundtrack starts itself

THUG1's retail scripts only queue the soundtrack when running from CD, so the THUG1 port needed a script patch to switch it on. THUG2's main menu starts the playlist itself (PlaySongsRandomly in launch_main_menu; the log says shuffling random song order num_songs=53), so that patch stayed behind.

5Find the tracks: hex names and a .wad

THUG2's PC release does it the same way as THUG1's: music files named after the checksum of the track name, in hex (04df1461.bik and 136 more in streams/music), voice streams packed into streams/pcm/pcm.wad, indexed by pcm.dat.

diffWn32/Code/Plat/Gel/Music/p_music.cpp · THUG1 port

@@ -205,14 +350,51 @@ namespace Pcm
+				// The PC version's files are named after the checksum of the track name in hex (e.g. a9a6af00.bik)
 				std::string name = i.path().stem().string();
-				uint32 checksum = Crc::GenerateCRCFromString(name.c_str());
+				uint32 checksum;
+				if (name.size() == 8 && name.find_first_not_of("0123456789abcdefABCDEF") == std::string::npos)
+					checksum = (uint32)std::stoul(name, nullptr, 16);
+				else
+					checksum = Crc::GenerateCRCFromString(name.c_str());
@@
+	static void IndexWad(const std::filesystem::path &dat, const std::filesystem::path &wad)
+	{
+		// pcm.dat: the number of streams, then the checksum of the name, offset and size of each one's .bik
+		std::ifstream file(dat, std::ios::binary);
+		uint32 count = 0;
+		if (!file.read((char*)&count, sizeof(count)))
+			return;
+
+		for (uint32 i = 0; i < count; i++)
+		{
+			uint32 entry[3];
+			if (!file.read((char*)entry, sizeof(entry)))
+				break;
+			wad_streams[entry[0]] = { entry[1], entry[2] };
+		}
+		wad_path = wad;
+	}

6Decode Bink audio, resample, spread over 5 channels

A built-in Bink audio decoder (binkaudio.cpp) feeds a streamer that resamples to 48 kHz (with pitch, because the game bends voice pitch) and places stereo on the 5 mixer channels the way sound effects do.

diffWn32/Code/Plat/Gel/Music/p_music.cpp · THUG1 port

@@ -171,6 +173,140 @@ namespace Pcm
+	// Decoder for the PC version's music and streams: the audio of the .bik files in Data/streams/music,
+	// and of the ones packed in Data/streams/pcm/pcm.wad
+	class BinkDecoder : public Streamer
+	{
+			// Pitch in percent
+			void SetPitch(float pitch) override
+			{
+				if (valid && pitch > 0.0f)
+					step = pitch / 100.0 * bink.GetSampleRate() / 48000.0;
+			}
+
+				float l = frame_a[0] + (frame_b[0] - frame_a[0]) * (float)position;
+				float r = frame_a[1] + (frame_b[1] - frame_a[1]) * (float)position;
+				position += step;
+
+				// Spread over the 5 mixer channels the same way sound effects place their left and
+				// right volumes (Sfx::SetVoiceParameters)
+				*out++ = l;
+				*out++ = r;
+				*out++ = (l + r) * 0.5f;
+				*out++ = l * 0.5f;
+				*out++ = r * 0.5f;
+	};
@@ -639,8 +824,12 @@ namespace Pcm
 	bool PCMAudio_SetStreamPitch( float fPitch, int whichStream )
 	{
-		(void)fPitch;
-		(void)whichStream;
+		Audio::Lock();
+
+		if (stream_stream[whichStream] != nullptr)
+			stream_stream[whichStream]->SetPitch(fPitch);
+
+		Audio::Unlock();
 		return true;
 	}

(void)fPitch; is a stub's way of saying "I heard you, I just don't care". Now it cares.
